Honda Shadow American Classic Edition Tourer VT1100T

Honda Shadow American Classic Edition Tourer VT1100T model information, photographs and specifications from the original Honda model archive.

2001 Honda Shadow American Classic Edition Tourer VT1100T

VT1100C'01

The 2001 VT1100C'01 SHADOW SPIRIT 1100 Engine Type : Liquid cooled, 45° V-twin, dual offset pin crank Displacement : 1099cc Bore and Stoke : 87.5mm x 91.4mm Compression Ratio : 8:1 Valve Train : SOHC, 3 valve per cylinder, self-adjusting hydraulic Carburetion : Twin 36mm, diaphragm-type CV Transmission : Wide-Ratio, 5-speed Final Drive : Shaft Front Suspension : 41mm fork, 160mm travel Rear Suspension : Dual shocks with 5-way spring preload adjustment, 100mm travel Front Tire : 110/90H-19 Rear Tire : 170/80H-16 Front Brakes : Single 336mm disc with twin piston caliper Rear Brakes : Mechanical drum Seat Height : 730mm (28.7") Wheelbase : 1651mm (65.0") Dry Weight : 251 kg (553 lb) Fuel Capacity : 15.8 liters Color : Blue, Red, or Black 1995-1997 VT1100C'03 comes in one of two colors: Pearl Dark Red or Black Engine: 1099cc liquid-cooled 45° V-twin Compression ratio: 8.0:1 Transmission: Five-speed Driveline: Shaft Front tire 110/90-19 Rear tire: 170/80-15 Seat height: 730mm (28.7 in.) Wheelbase: 1650mm (65.0 in.) Dry weight: 251 kg (553 lb) Fuel capacity: 15.8 liters

Model information

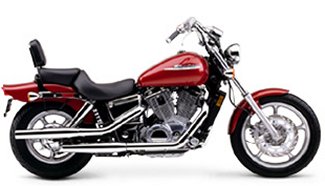

VT1100C'03

VT1100C'03 comes in one of two colors: Pearl Dark Red or Black Engine: 1099cc liquid-cooled 45° V-twin Compression ratio: 8.0:1 Transmission: Five-speed Driveline: Shaft Front tire 110/90-19 Rear tire: 170/80-15 Seat height: 730mm (28.7 in.) Wheelbase: 1650mm (65.0 in.) Dry weight: 251 kg (553 lb) Fuel capacity: 15.8 liters
