Honda CBR1100 model information, photographs and specifications from the original Honda model archive.

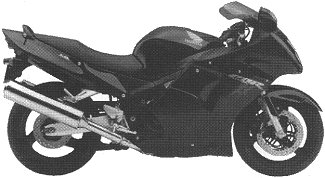

The CBR1100XX'97 was sold in 1997 and was available in one color: Mute Black Metallic. The engine was a light weight 1137cc inline four cylinder where the upper crankcase and cylinder block were one piece. The braking system was linked. The serial number began JH2SC350*VM000001.
The CBR1100XX'98 was sold in 1998 and was available in one color: Mute Black Metallic. The engine was a light weight 1137cc inline four cylinder where the upper crankcase and cylinder block were one piece. The braking system was linked. The serial number began JH2SC350*WM100001.

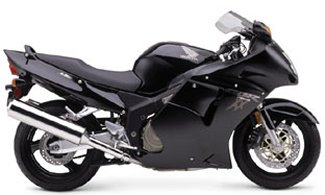

The 2003 CBR1100XX'03 was sold in one color: Metallic Black. Engine: 1137cc DOHC liquid-cooled inline four-cylinder Bore and stroke: 79.0 x 58.0 mm Compression ratio: 11.0:1 Transmission: Close-ratio six-speed Final drive: O-ring chain Front suspension: 43mm HMAS™ cartridge fork with spring-preload and rebound- damping adjustability Rear suspension: Pro-Link HMAS™ single-shock with spring-preload and rebound-damping adjustability Front brake: Linked Braking System; dual floating discs with three-piston calipers Rear brake: Linked Braking System; single-disc with three-piston caliper Front tire 120/70ZR-17 radial Rear tire: 180/55ZR-17 radial Wheelbase: 1486mm (58.5 in.) Seat height: 810mm (31.9 in.) Dry weight: 223 kg (492 lb) Fuel capacity: 24 liters
