GL1100A'82 GL1100A'82 - In 1982 Honda featured a luxury model called the Aspencade. and Interstate. It came in two available two-toned colors: Sterling Silver Metallic with Tempest Gray Metallic and Sorrel Brown Metallic with Harvest Gold Metallic. The silver unit was 2-tone silver and black while the brown unit was 2-tone brown and dark brown. It also featured a Type II audio system with a handlebar-mounted control and an on-board air compressor system. The wheels were black reverse comstar. The speedometer showed a 85 mph (135 kph) limit. The turn signal featured a self-cancelling system. The saddle was dual and more pronounced like in the previous year, but the passenger backrest was larger than the Interstate and had storage pouches. The front wheel had dual slotted discs with dual piston calipers. The front tire was a 120/90-18 and the rear tire was 140/90-16. The engine was still 1085cc, SOHC 2-valve, liquid-cooled, opposed four cylinder. The transmission was a 5-speed with a shaft drive. The frame serial number began with 1HFSC022*CA200001 and the engine serial number began SC02E-2300012.
Buy from
Buy from
Buy from
Honda, GL1000 and 1100 Fours 1975-1983 by Eric Jorgensen

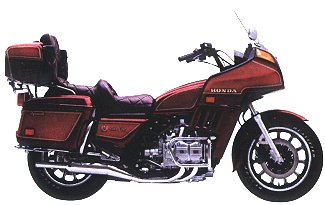

1983 Gold Wing Aspencade

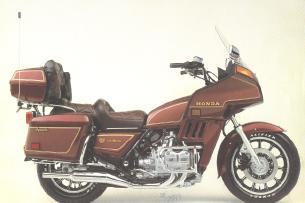

GL1100A'83 - In 1983 Honda continued with the upscale Aspencade. It came in two available two-tone colors: Nimbus Gray Metallic with Achilles Black Metallic and Candy Wineberry Red with Bramble Red Metallic. "The Aspencade is the ultimate in touring motorcycles. At its heart is a proven flat-four engine. Special features include an on-board suspension adjustment system, standard Type II Honda stereo radio, and brand new LCD digital instrumentation. Quite simply, there is no other choice for the long-distance rider"
"Combination LCD-digital instrument panel and keyboard. Instrument panel contains LCD read-outs for speed (with mph/kph converter), engine-rpm, trip, gear position, fuel and engine temperature. Also, there are warning lights for high beam, neutral, oil, and air suspension status. The keyboard is the control center for the Aspencade's on-board air suspension leveling system, as well as a trip-monitor system. TRAC™ torque-sensing anti-dive control units with four-position stiffness adjusters fitted to both fork legs."
"Interconnected braking system. The rider's right foot controls one front disc and the rear disc, while the right handlebar lever controls the other front disc. Less of the rider's attention is required for most normal braking manoeuvers. The fork brace stabilizes front fork action. Redesigned engine guard gives more foot clearance and allows easier fitting of highway pegs. Three-position adjustable passenger foot pegs move through a range of 60 mm. Larger, flat-section foot pegs increase comfort."
"Internal gear ratio changes lower engine speed at highway speeds, especially in overdrive."
"Travel trunk moved rearward 30 mm for more passenger comfort, and taller backrest fitted. New shape two-tone seat has improved comfort with dual density foam. Cover material upgraded with new, soft-feeling cover."
Engine: 1085cc, SOHC 2-valve, liquid-cooled, horizontally opposed four cylinder
Bore & stroke: 75 x 61.4 mm
Compression ratio: 9.2:1
Carburetion: four 30 mm, CV type
Ignition system: Transistorized pointless Clutch: wet multi-plate
Transmission: 5-speed, constant mesh
Drive: Shaft
Exhaust system: Four-into-two with balance tube
Starting system: electric Speedometer: Showed a 150 mph (240 kph) limit
Instrument panel: Digital
Turn signal: Self-cancelling system
Saddle: Dual and more pronounced as in the previous year, but the passenger backrest was larger with storage pouches
Brakes: Interconnected brakes, dual slotted (ventilated) discs with dual piston calipers in front and single disc in rear
Front suspension: Front forks are air-assisted telescopic with TRAC™ anti-dive control
Rear suspension: air-assisted shocks
Wheels: Honda cast with 11 spokes
Front tire: 120/90H-18
Rear tire: 140/90H16
Gas type: regular
Wheelbase: 1605 mm
Dry weight: 321 kg
Overall length: 2460 mm
Overall width: 920 mm
Seat height790 mm
Fuel capacity20 litres
The frame serial number began with 1HFSC022*DA300101 and the engine serial number began SC02E-2300012.
