Honda Shadow American Classic Edition Tourer VT1100T

Honda Shadow American Classic Edition Tourer VT1100T model information, photographs and specifications from the original Honda model archive.

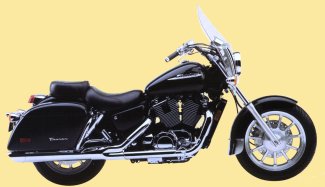

2001 Honda Shadow American Classic Edition Tourer VT1100T

VT1100T'01

The 2001 VT1100T'01 ACE Tourer 1100 Engine Type : Liquid cooled, 45° V-twin, dual offset pin crank Displacement : 1099cc Bore and Stoke : 87.5mm x 91.4mm Compression Ratio : 8:1 Valve Train : SOHC, 3 valve per cylinder, self-adjusting hydraulic Carburetion : Twin 36mm, diaphragm-type CV Transmission : Wide-Ratio, 5-speed Final Drive : Shaft Front Suspension : 41mm fork, 150mm travel Rear Suspension : Dual shocks with 5-way spring preload adjustment, 95mm travel Front Tire : 130/80H-18 Rear Tire : 170/70H-16 Front Brakes : Single 316mm disc with twin piston caliper Rear Brakes : Single 276mm disc with single piston caliper Seat Height : 730mm (28.7") Wheelbase : 1656mm (65.2") Dry Weight : 285 kg (626 lb) Fuel Capacity : 15.8 liters Color : Black 1995-1997
