Honda Magna VF750C

The VF750C'82 V45 Magna was sold in 1982 and was available in one of two colors: Candy Maroon or Candy Imperial Blue. The headlight, instruments, and fenders were chrome. The gas tank and side covers were the basic color (maroon or blue). The front disc brake grooves were straight. The speedometer had a 85 mph (135 kph) limit. The engine was a 748cc DOHC 4-valve liquid-cooled V-4 linked to a 6-speed transmission and a shaft drive. The serial number began JH2RC071*CM000033.

The VF750C'83 V45 Magna was sold in 1983 and was available in one of two colors: maroon or black. The headlight, instruments, and fenders were chrome. The gas tank and side covers were the basic color (maroon or black). The front disc brake grooves were curved. The speedometer had a 150 mph (240 kph) limit. Engine : 748cc 4-valve thermostatically-controlled, liquid-cooled V-4 DOHC Transmission : Five-speed plus overdrive sixth transmission Drive : Shaft Brakes : Dual front disc brakes with twin piston calipers and TRAC™ anti-dive control system Rear suspension : VHD™ rear shocks with aluminum reservoirs Wheelbase : 1539mm (60.6 in.) Seat height : 760mm (29.9 in.) Fuel capacity : 14 liters (3.7 gal.) including 4 liter (1.1 gal) reserve Dry weight : 220 kg (483 lb) The serial number began JH2RC071*DM100011.

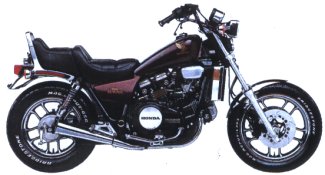

The VF750C'84 V45 Magna was sold in 1984. Engine : 748cc 4-valve thermostatically-controlled, liquid-cooled 90° V-4 DOHC Transmission : Five-speed plus overdrive sixth transmission Clutch : Hydraulic Drive : Shaft Brakes : Dual front disc brakes with twin piston calipers and TRAC™ anti-dive control system Rear suspension : VHD™ rear shocks with aluminum reservoirs Wheelbase : 1540mm (60.6 in.) Seat height : 760mm (29.9 in.) Fuel capacity : 14 liters (3.7 gal.) including 4 liter (1.1 gal) reserve Dry weight : 219 kg (482.7 lb) The serial number began JH2RC071*EM100011.

The VF750C'88 V45 Magna was sold in 1988 and was available in one of two colors: Black or Candy Bourgogne Red. The air cleaner cover was wrinkle black with a "V45" emblem. The exhaust system was a 4-into-4. The rear wheel was aluminum disc. The chin fairing was color matched. The "MAGNA" tank decal was silver. The engine was a 748cc DOHC 4-valve liquid-cooled V-4 linked to a 6-speed transmission and a shaft drive. The serial number began JH2RC280*JA100001.

The VF750C'94 Magna was sold in 1994 and was available in one of three colors: Magna Red, Black, or Pearl Shinning Yellow. The serial number began JH2RC430*RM000004.

The VF750C'95 Magna was sold in 1995 and was available in one of two colors: Candy Glory Red or Pearl Shinning Yellow. The serial number began JH2RC430*SM100001.

The VF750CD'95 Magna Deluxe was sold in 1995 and was available in one of two color schemes: Pearl Paragon Purple with Pearl Fadeless White or Black with Pearl Salem Mint. The mini fairing had a two- tone color pattern. The serial number began JH2RC433*SM000001.

The VF750C'96 Magna was sold in 1996 and was available in one of four colors: Pure Red, Pearl Shining Yellow, Black, or Orange. The gas tank logo was redesigned. The serial number began JH2RC430*TM200001.

The VF750CD'96 Magna Deluxe was sold in 1996 and was available in one of two color schemes: Pearl Paragon Purple with Pearl Fadeless White or Black with Pure Red. The two-tone color patterns were redesigned. The serial number began JH2RC433*TM000001.

The VF750C'97 Magna was sold in 1997 and was available in just one color: Black. The serial number began JH2RC430*VM300001.

The VF750C'98 Magna was sold in 1998 and was available in just one color: black. The serial number began JH2RC430*WM400001.

The VF750C2'97 Magna was sold in 1997 and was available in one of two color schemes: Pure Red with Black or Black with Pearl Shinning Yellow. The serial number began JH2RC433*VM200001.

The VF750C2'98 Magna was sold in 1998 and was available in one of two color schemes: Black with Terra Silver Metallic or Black with Pearl Sparkling Blue. The serial number began JH2RC433*WM300001.

The 2001 VF750C'01 MAGNA 750 Engine Type : Liquid cooled, 90° V-four Displacement : 748cc Bore and Stoke : 70mm x 48.6mm Compression Ratio : 10.8:1 Valve Train : DOHC, 4 valve per cylinder, shim under bucket Carburetion : Four, 34mm, downdraft, flatslide, CV Transmission : Close-ratio, 5-speed Final Drive : "O" ring chain Front Suspension : 41mm fork, 150mm travel Rear Suspension : Dual shocks with 5-way spring preload adjustment, 95mm travel Front Tire : 120/80V-17 Rear Tire : 150/80V-15 Front Brakes : Single 316mm disc with twin piston caliper Rear Brakes : Mechanical drum Seat Height : 710mm (28") Wheelbase : 1652mm (65.0") Dry Weight : 229 kg (505 lb) Fuel Capacity : 13.5 liters Color : Black VF750'03 comes in one color: Blue Engine: 748cc liquid-cooled 90° V-four Compression ratio: 10.8.0:1 Transmission: Five-speed Driveline: O-ring-sealed chain Front tire 120/80-17 Rear tire: 150/80-15 Seat height: 710mm (28.0 in.) Wheelbase: 1652mm (65.0 in.) Dry weight: 229 kg (505 lb) Fuel capacity: 13.6 liters

VF750'03 comes in one color: Blue Engine: 748cc liquid-cooled 90° V-four Compression ratio: 10.8.0:1 Transmission: Five-speed Driveline: O-ring-sealed chain Front tire 120/80-17 Rear tire: 150/80-15 Seat height: 710mm (28.0 in.) Wheelbase: 1652mm (65.0 in.) Dry weight: 229 kg (505 lb) Fuel capacity: 13.6 liters
